Contact Information Transmission Equipment (IP type)

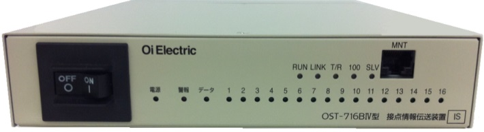

OST-716BIV (IP type)

This equipment can transmit contact information through transmission lines using IP lines.
Extending slave devices to it allows the addition of contacts (DI, DO).
Further, this equipment supports the SNMP protocol, allowing a PC-based SNMP manager to monitor and control contact information.

Equipment Category
Contact information transmission equipment
Connection configuration
Simplex,
Point-to-point (1:1)
Transmission line IF
10BASE-T/100BASE-TX
Terminal side IF
contact input,
contact output
Power supply
100V AC,
-24V DC,
-48V DC,
110V DC

The basic configuration (master device) is used to transmit 16-point contact information.

Slave devices can be extended to the master device.

The extension (16 points/slave) allows the bidirectional transmission of contact information, achieving a maximum of 128-point contact information transmission (a maximum of 112-point transmission for the reverse direction).

A maximum of four PC-based SNMP managers can monitor and control contact information.

Various maintenance operations can be performed through Web browsers.

Various settings, status display, contact control, log display, etc.

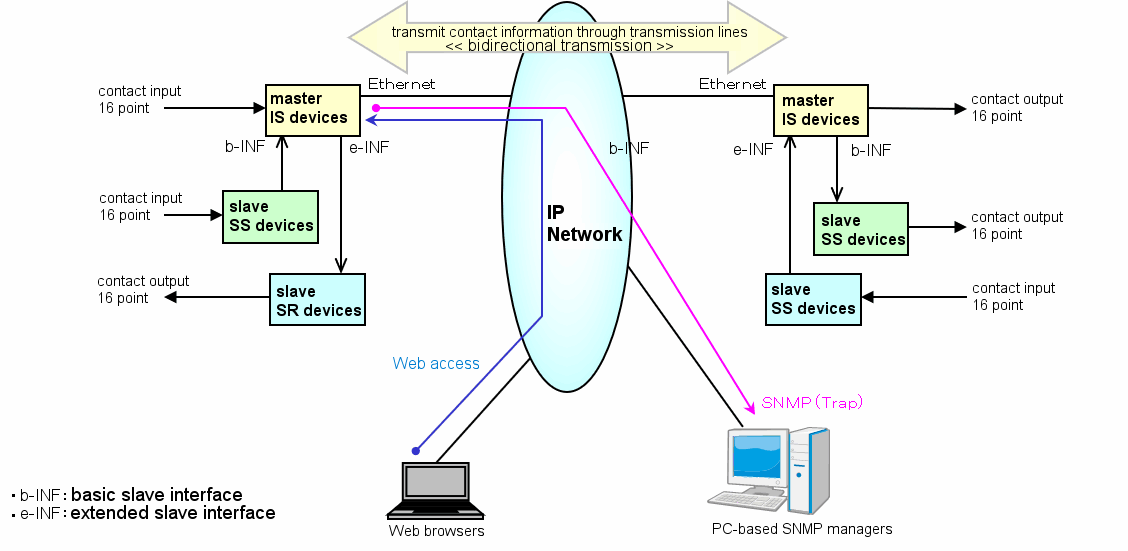

Configuration example

Main Specifications

Item Specifications Remarks
Temperature

-10°C to +50°C (operation guarantee)
0°C to +40°C (performance guarantee)

Humidity

30 to 90% (operation guarantee in an environment with no condensation)
40 to 85% (performance guarantee in an environment with no condensation)

Power supply

100 V AC/110 V DC/-48 V DC/-24 V DC

Power dissipation

12 W or lower

Number of maximum slave devices that can be connected

Basic slave interfaces: 7
Extended slave interfaces: 7

Transmission line interface

10BASE-T/100BASE-TX (RJ45)

Contact input interface

Applied voltage: 24 V DC
Outflow current: 10 mA or lower
Wrapping terminal

Contact output interface

Contact capacity: 110 V DC/200 mA or lower
Wrapping terminal

Alarm output

1 point (Contact capacity: 110 V DC/200 mA or lower)

* Improvements may be made to the specifications and appearance of this product without notice.
