Analog Level Meter
New
LM-78
This is an analog-meter-equipped level meter that can perform level measurement in a frequency range of 40 Hz to 160 kHz.
The analog meter can be very useful when the level of a measured object fluctuates significantly.
Equipment Category
Measuring instruments for transmission characteristics
Power supply
AC adaptor, AA batteries
An analog meter is used as an indicator.
Capable of measuring high levels ranging from -60 to +30 dBm.
Can be operated with four AA batteries.
Signals can be monitored through the built-in speaker or earphones.

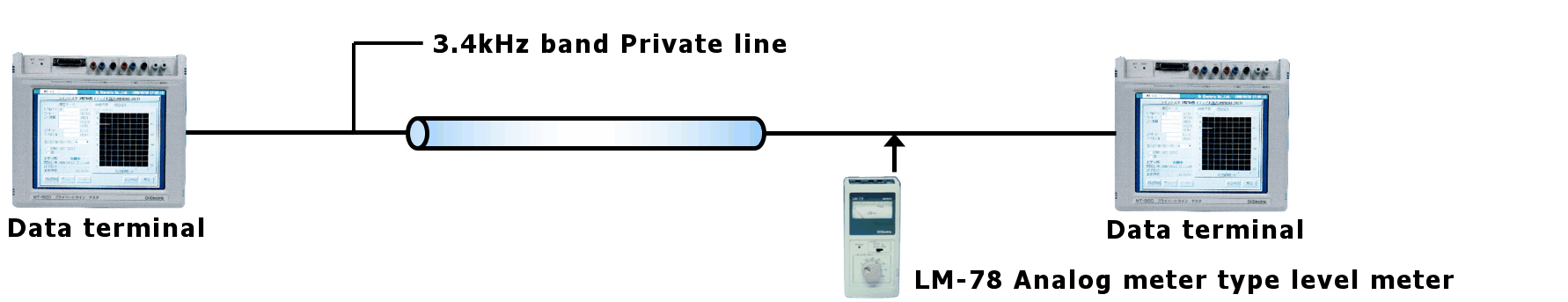

Configuration example
Main Specifications
| Item | Specifications | Remarks |
|---|---|---|
|
Frequency range
|
600Ω：40Hz～25kHz |
|
|
Level measurement range
|
-60dBm～+30dBm |
|
|
Input impedance
|
110Ω／High |
|
|
Power supply
|
AA batteries × 4 or 100 V AC: use of an AC adaptor (optional) |
|
|
Dimensions
|
W96 × H208 × D50 mm |
|
|
Weight
|
700 g or less |
|
|
Operating temperature range.
|
0°C to 40°C (Note: in an environment with no condensation) |
* Improvements may be made to the specifications and appearance of this product without notice.
