Multifunctional Level Variation Recorder
New
DLR-203
A level variation recorder capable of recording voltage variations on the same time axis as when recording signal level variations.
By simultaneously recording the level meter input 2 channels and the voltmeter input 2 channels, it is effective for failure analysis of communication lines. Diverse trigger function does not overlook the cause of failure.
Equipment Category
Measuring instruments for transmission characteristics
Power supply
AC adaptor
It incorporates two channels for recording signal level variations and another two channels for voltage variations.
Equipped with various trigger functions, DLR-203 securely detects all failure causes.
Capable of remote control through IP lines.
Measurement data can be saved in USB memory.
It is possible to operate it with a personal computer, a tablet, etc. by remote desktop.

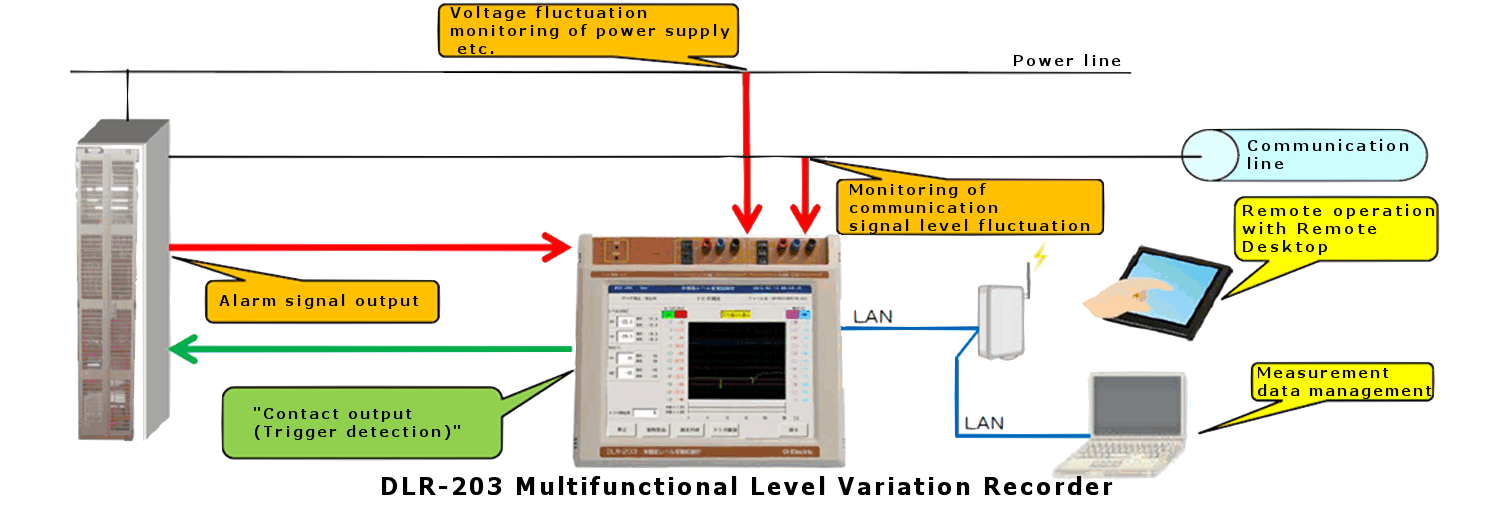

Configuration example
Main Specifications
|
Item |
Specifications |
|||||||||||||||||||||||||||
| Level measurement unit | Number of input channels | 2 | ||||||||||||||||||||||||||
| Input impedance | Within 600 Ω±5% (balanced)/HIGH (50 kΩ or higher) | |||||||||||||||||||||||||||
| Measurement frequency range | 300Hz～4kHz | |||||||||||||||||||||||||||
| Level measurement range | -70dBm～+10dBm | |||||||||||||||||||||||||||
| Measurement accuracy | Average/Maximum/Minimum: within ±0.5 dB | |||||||||||||||||||||||||||
| Measurement setting |
|
|||||||||||||||||||||||||||
| Voltage measurement unit | Number of input channels | 2 | ||||||||||||||||||||||||||
| Input impedance | 1 MΩ or higher | |||||||||||||||||||||||||||
| Voltage measurement range | -250V～+250V | |||||||||||||||||||||||||||
|
Measurement band |
DC～200kHz | |||||||||||||||||||||||||||
| Measurement accuracy | Average: within ±2%±2 dgt; Max./Min.: within ±5%±2 dgt | |||||||||||||||||||||||||||
| Measurement setting |
|
|||||||||||||||||||||||||||
| External trigger | Number of input channels | 2 | ||||||||||||||||||||||||||
| Input signal | TTL level | |||||||||||||||||||||||||||
| Alarm output | "a" contact output × 1 channel: * The detection of the specified trigger outputs an alarm | |||||||||||||||||||||||||||
| Sampling frequency | Level measurement unit: 1 msec; Voltage measurement unit: 1 μsec | |||||||||||||||||||||||||||
| Display speed | 1msec/dot、10msec/dot、100msec/dot、1sec/dot、10sec/dot、50sec/dot 100sec/dot、400sec/dot |
|||||||||||||||||||||||||||
| Data storage/protection | Measured data is stored in nonvolatile memory To take measures against power supply shutdown during measurement, it has a built-in battery and issues a "warning" when the battery capacity decreases due to a shutdown, and subsequently stops measurements and stores the measured data |
|||||||||||||||||||||||||||
| External interface | USB × 1 port, LAN × 1 port | |||||||||||||||||||||||||||
| Power supply | 100V AC, 50/60 Hz (AC adaptor: Use ADP-60WA) | |||||||||||||||||||||||||||
| Guaranteed temperature/humidity performance | Temperature: 0°C to 40°C; Humidity: 20% to 85% (Note: in an environment with no condensation) | |||||||||||||||||||||||||||
| Dimensions/mass | Dimensions: approx. W280 × D245 × H175 mm; Mass:3.5 kg or less | |||||||||||||||||||||||||||
