Circuit Inspection Tester
MS-603
This is a circuit inspection tester for testing the circuit connection and transmission quality of general subscriber lines and OD trunk lines (compliant with the SR system 4-wire and E&M type V).
Equipment Category
Measuring instruments for telephones and facsimiles
Power supply
AC adaptor, AA batteries
It is a tester used for testing voice switched lines consisting of gateways and routers that incorporate general subscriber lines, 2-wire lines in analog extension PBXs, etc., multiplexers (MUX), in-band ringers (IBR), private branch exchanges (PBX).
MS-603 functions as a pseudo-terminal, pseudo-MUX, and pseudo-PBX to enable the testing and verification of the operating conditions of the line connection in transmission devices at opposite ends of the line.
In addition, its built-in oscillator and level meter allow the measurement of transmission quality.
For monitoring purposes, the measured data of line connection sequences can be stored in multimedia cards (MMC), thereby allowing spreadsheet software etc. for PCs to import and edit (graph creation and document handling) the data.

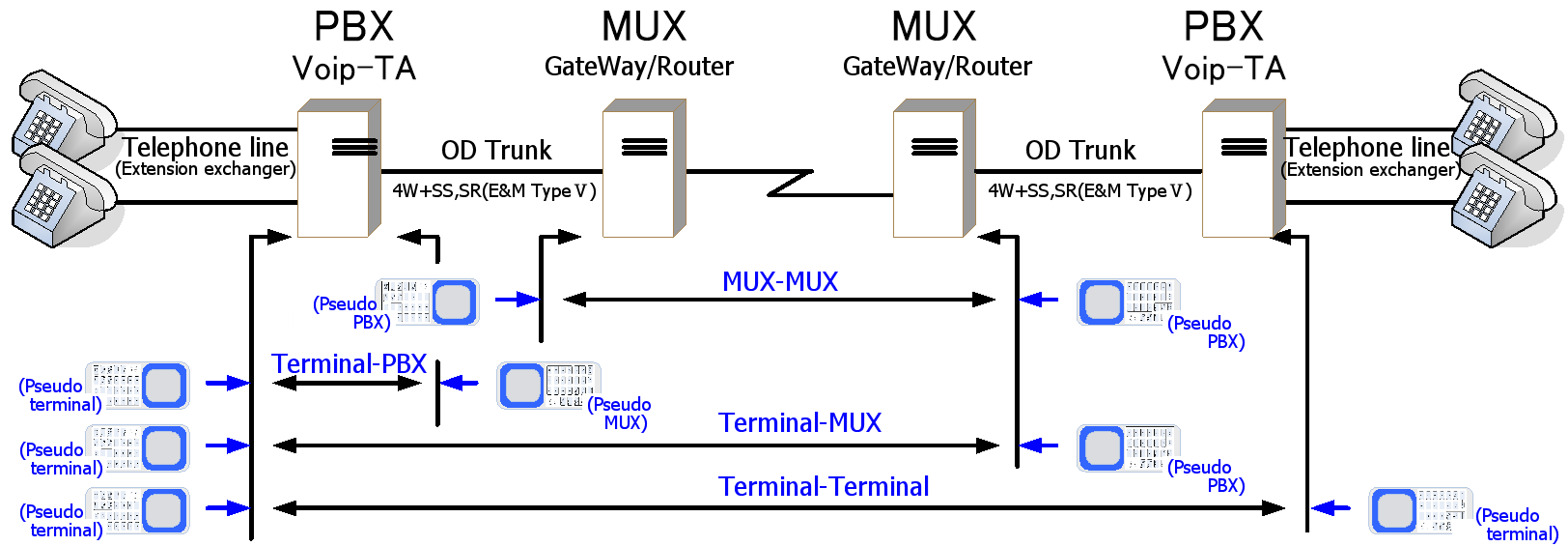

Configuration example
Main Specifications
| Main Specifications | |||||||||
| Item | Specifications | ||||||||
| Measurement terminal | Terminal | TEL | RJ-11 (6-pole 2-core: ISO/ICE11801) | ||||||
| E&M | RJ-45 (8-pole 8-core: ISO/ICE10173) | ||||||||
| Input and output impedance/input resistance | TEL | TERMINAL | Input and output impedance: 50 kΩ or higher (ON HOOK)/within 600 Ω±20% (OFF HOOK) * in a frequency range of 300 Hz to 3.4 kHz Input resistance: 1 MΩ or higher (ON HOOK)/50 Ω to 300 Ω (OFF HOOK) |
||||||
| MONITER | Input and output impedance: 50 kΩ or higher * in a frequency range of 300 Hz to 3.4 kHz Input resistance: 1 MΩ or higher |
||||||||
| E&M | TERMINAL | 4WS(T)/4WR(R): Input impedance: within 600 Ω±2%/Output impedance: within 600 Ω±10% * in a frequency range of 300 Hz to 3.4 kHz Input resistance between SS(M)/SR(E) and (-SG): 40 kΩ or higher (when SS(M)/SR(E) are OFF) |
|||||||
| MONITER | 4WS(T)/4WR(R): Input impedance/50 kΩ or higher * in a frequency range of 300 Hz to 3.4 kHz Input resistance between SS(M)/SR(E) and (-SG): 40 kΩ or higher |
||||||||
| Level meter | Measurement frequency range | 300Hz～10kHz | |||||||
| Level measurement range | TEL: -50 dBm to +5 dBm (↑↓: key with a display indicating overflow/underflow); PBX/MUX: -60 dBm to +5 dBm/Resolution: 0.1 dB | ||||||||
| Level measurement accuracy | TEL: within ±1.0 dB; PBX/MUX: within ±0.5 dB | ||||||||
| Frequency counter | 300 Hz to 9999 Hz/Resolution: 1 Hz/ Counting error: within ±2 Hz (when counting the cycles in a sine wave) | ||||||||
| Oscillator | Output frequency | MANUAL:300 Hz to 9990 Hz/Setting resolution: 10 Hz/STEP: 0.3/0.6/0.8/1.0/1.3/1.5/1.8/2.0/2.5/3.0/3.4 kHz (11 points); Frequency accuracy: within ±0.01% | |||||||
| Output level | -50 dBm to +5 dBm/Setting resolution: 1 dB/Output accuracy: TEL: within ±1.0 dB; PBX/MUX: within ±0.5 dB |
||||||||
| Signal purity | Overall distortion factor: 40 dB or higher (300 Hz to 4 kHz) Distorted waves:4 kHz to 8 kHz: p-30 dB or lower/8 kHz to 12 kHz: p-40 dB or lower/12 kHz to 50 kHz (in each 4-kHz band): p-60 dB or lower; ＊ p: 1 kHz/0 dBm |
||||||||
| Line connection control | Hook control | TEL: ON HOOK/OFF HOOK/HOOKING control PBX/MUX: SS(M)/SR(E) ON/OFF control | |||||||
| Dialing out | Dial signaling system | DP10、DP20、PB | |||||||
| Dialed number | DP10,DP20：1～9,0 PB：1～9,0,＃,＊ | ||||||||
| Number of dialed digits | 25 digits per dialing sequence * One dialing sequence: between OFF HOOK (SS (M)/SR (E) ON) and ON HOOK (SS (M)/SR (E) OFF) | ||||||||
| Dialing | DP10 | Speed: within 10±0.1 pps; Make ratio: within 33±1%; Minimum pause: 650 msec or longer | |||||||
| DP20 | Speed: within 20±0.1 pps; Make ratio: within 33±1%; Minimum pause: 450 msec or longer | ||||||||
| PB | Frequency deviation: within signal frequency±0.2%; Transmission level: -30 to +5 dBm/Configurable in 1-dB steps | ||||||||
| WINK transmission | WINK ON/OFF control: A_TIME = 10 msec to 5000 msec; B_TIME = 10 msec to 490 msec; Setting resolution: 10 msec; Output accuracy: within ±1% | ||||||||
| Line connection sequence detection | TEL line condition | Open line | Detected when a line voltage of less than 1 V continues for 1,500 msec | ||||||
| ON HOOK | 24 V system: Detected when a line voltage of 12 V or higher continues for 100 msec or longer; 48 V system: Detected when a line voltage of 16 V or higher continues for 100 msec or longer | ||||||||
| OFF HOOK | 24 V system: Detected when a line voltage of less than 12 V continues for 100 msec or longer; 48 V system: Detected when a line voltage of less than 16 V continues for 100 msec or longer | ||||||||
| SS(M)/SR(E) condition | ON: Detected when -5V or higher continues to be measured for 500 msec; OFF: Detected when -8V or lower continues to be measured for 500 msec | ||||||||
| Call signal | IR (call signal) | Frequency: 15 Hz to 20 Hz; Voltage: (75 - 10 Vrms) to (75 + 8 Vrms); Break-make ratio: within 20 IPM±20%; Make ratio: within 33±10% | |||||||
| SIR (extension call signal) | Frequency: 15 Hz to 20 Hz; Voltage:(75 - 10 Vrms) to (75 + 8 Vrms); Signaling pattern: ON (0.25 to 0.36 sec) and OFF (0.2 to 0.3 sec) | ||||||||
| CAR (Information receiving terminal activation signal) | Frequency: 15 Hz to 20 Hz; Voltage:(75 - 10 Vrms) to (75 + 8 Vrms); Signaling pattern: ON (0.4 to 0.6 sec) and OFF (0.4 to 0.6 sec) | ||||||||
| Audible sound (tone signal) | DT (dial tone) | Frequency:within 400 Hz±20 Hz; Level:within -30 dBm and -4 dBm; Brake-make ratio:continuous | |||||||
| SDT (Second dial tone) | Frequency:within 400 Hz±20 Hz; Level:within -30 dBm and -4 dBm; Brake-make ratio:240 IPM; Make ratio:50% | ||||||||
| PDT (private dial tone) | Frequency:within 400 Hz±20 Hz; Level:within -30 dBm and -4 dBm; Brake-make ratio:120 IPM; Make ratio: 50% | ||||||||
| RBT (ring back tone) | Frequency:A carrier (within 400 Hz±20 Hz) is modulated by a signal in a frequency range of 15 Hz to 20 Hz (modulation ratio: within 85%±15%).; Level: within -30 dBm and -4 dBm; Break-make ratio: within 20 IPM±20%; Make ratio: within 33±10% | ||||||||
| BT (busy-back tone) | Frequency:within 400 Hz±20 Hz; Level: within -30 dBm and -4dBm; Break-make ratio: within 60 IPM±20%; Make ratio:within 50±10% | ||||||||
| Dial signal | DP10 | Speed: 8 to 12 pps; Make ratio: within 33±5%; Minimum pause: 300 msec or longer | |||||||
| DP20 | Speed: 18 to 22 pps; Make ratio: within 33±5%; Minimum pause: 300 msec or longer | ||||||||
| PB | Frequency deviation: within signal frequency±1.5%; Signal level: -24 dBm to -3 dBm | ||||||||
| WINK signal | A_TIME = 10 msec to 5000 msec and B_TIME = 10 msec to 490 msec are detected as WINK signals Resolution: 1 msec; Measurement accuracy: within ±1% (Only "WINK" is displayed, and the measured values are stored in the multimedia card (MMC) when DATA SAVE is enabled) |
||||||||
| CALL ID | Information notification service before starting communication (Only CALL ID is displayed, and the information is stored in the multimedia card (MMC) when DATA SAVE is enabled) * Conforming to "Service interface for information notification on telephony networks - Information notification service before starting communication, version 5 (電話網における情報通知系サービスのインターフェース通信前情報通知サービス第5版)", which is the technical reference document created by Nippon Telegraph and Telephone Corporation |
||||||||
| V.25 answer tone | Signal frequency: 2,100 Hz±10 Hz; Signal level: -40 dBm to +5 dBm; Duration: 1,500 msec or longer | ||||||||
| Facsimile communication start signal | Signal frequency: 1,300 Hz±10 Hz; Signal level: -40 dBm to +5 dBm; Duration: 1,500 msec or longer | ||||||||
| No-ringing communication start signal | Signal frequency: 1,800 Hz±10 Hz; Signal level: -40 dBm to +5 dBm; Duration: 1,500 msec or longer | ||||||||
| Data storing function | Line connection sequence information can be stored in multimedia cards (MMC): File format: CSV file format; File system: FAT16 * Max. capacity: 2 Gbyte (due to FAT16 file system specifications) |
||||||||
| Clock | Managed using 24-hour time with the last two digits of the Gregorian Calendar year (YY.MM.DD HH.MM.SS) | ||||||||
| Call function | Capable of making calls to devices at opposite ends of the line (by using the HS-107 handset) | ||||||||
| Power supply | AA batteries × 4/The AC adaptor (ACP-311M) can be used * A low battery alarm function is available (displaying on the screen and stopping the data storage operation) | ||||||||
| Guaranteed temperature/humidity performance | Temperature: 0°C to 40°C; Humidity: 20% to 85% (Note: in an environment with no condensation) | ||||||||
| Dimensions/mass | D49.5 × H207.5 × W96.4 mm (Tolerance: ±1 mm/The projection is not included)/600 g or less (batteries not included) | ||||||||
