Frequency Selective Level Meter
New
SPM-40

This is a selective level meter that can measure the overall transmission characteristics of a variety of carrier telephone equipment and communication devices over a wide frequency band.
Collectively integrating the level meter unit and filters switchable for measurement, SPM-40 demonstrates its strong capabilities to measure the levels of signals at any frequency.

Equipment Category
Selective level meter
Power supply
AC adaptor, AA batteries

It has been designed with an operability-oriented structure by employing a dial knob type switch for selecting the measurement frequency.

Compatible with systems with various impedances ranging from 75 Ω to 600 Ω.

It can measure a wide-ranging input power of -80 dBm to +20 dBm.

Fitting an external attenuator to the meter can increase the maximum input power to +30 dBm. (Only an attenuator for a 75 Ω unbalanced line comes as an standard accessory.)

The impedance of external attenuators can be switched between HIGH and LOW (terminated), making it possible to measure active lines in the HIGH impedance state.

The selection of the built-in filters for measurement and the FLAT measurement mode can be switched and used with one-touch control.

Measured data can be stored in multimedia cards (MMC) in CSV format, thereby allowing PCs, etc. to import the data for editing with spreadsheet software, etc.

This new compact product is a battery-operated hand-held meter.

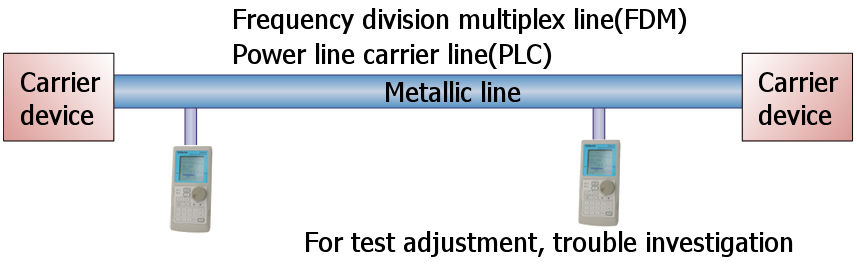

Configuration example

SPM-40

Main Specifications

Main Specifications
Item Specifications
Input types
Types Terminal Impedance * Measurement frequency range
75 Ω (balanced) C2-11P 75Ω±5%/HIGH 4kHz～800kHz
135 Ω (balanced) 135Ω±5%/HIGH 100Hz～800kHz
150 Ω (balanced) 150Ω±5%/HIGH 100Hz～800kHz
600 Ω (balanced) 600Ω±5%/HIGH 100Hz～150kHz
75 Ω (unbalanced) BNC 75Ω±5%/HIGH 100Hz～ 2MHz
* HIGH： 30 kΩ or higher for 75Ω (balanced)/135Ω (balanced)/150Ω(balanced)/600Ω(balanced); 10 kΩ or higher for 75 Ω (unbalanced)
Level measurement Measurement range FLAT measurement mode: -60 to +20 dBm
When filters are used: -80 to +20 dBm
When an external attenuator is fitted: -60 to +30 dBm; An external attenuator for a 75 Ω unbalanced line comes as a standard accessory.
Can be switched between 75 Ω and HIGH.
Measurement resolution 0.1dB
Level measurement accuracy
  100Hz～<650KHz 650KHz～2MHz
-30dBm～+20dBm Within ±0.3 dB Within ±0.5 dB
-80dBm～<-30dBm Within ±0.5 dB Within ±1.0 dB
* Filter insertion errors are excluded.
When putting a filter in place to insert it, filter insertion errors are added up separately.
Filter (bandpass filter)
Bandwidth Pass band Level measurement range Insertion error
6Hz 100Hz～2MHz -80dBm～ ＋20dBm Within ±0.5 dB
70Hz 100Hz～2MHz -80dBm～ ＋20dBm Within ±0.5 dB
3.1kHz 10kHz～2MHz -80dBm～ ＋20dBm Within ±0.5 dB
Data storing function Measured data can be stored in MMC cards
Use environment Temperature range: 0°C to 40°C; Humidity range: 20% to 80% (Note: in an environment with no condensation)
Dimensions/mass Dimensions: W96 mm × H208 mm × D50 mm; Mass: 600 g or less (accessories and options not included)
Power supply AC adaptor Within 100 V AC±10%
50Hz/60Hz
AC adaptor mass: approx. 1.4 kg
Dry battery AA batteries × 4
